Floor Heating Thermostat
A Nordic-edition thermostat for electric underfloor heating. A colour display and three simple keys give end users full control — schedules, PWM, window-open detection and floor protection — without an app or Wi-Fi.
Smart features, zero setup friction
Works out of the box
No pairing, accounts or network setup — installers finish the job on site and end users never need to call for app support.
Clear colour display
Dynamic graphics and text show time, temperature and status icons at a glance. Multi-language menus.
Floor protection built in
Power limit for wooden floors, floor-temperature limits and protection settings keep installations safe.
Everything a modern floor thermostat needs
- Three operation modes — Manual, Schedule and PWM (time-proportional control)
- Weekly heating schedule with separate workday and rest-day programmes
- Adaptive start — automatically starts heating early to reach the target temperature on time
- Window-open detection — pauses heating when a sudden drop is detected
- Built-in room sensor + external floor sensor, selectable as main sensor
- Power limit for wooden floor protection
- Sensor calibration, temperature swing (hysteresis) and protection limits
- Child lock & PIN for public and rental spaces
- Integrated 2-pole switch (topolt brudd)
- Adjustable backlight, power-on state and factory reset
Technical data
| Model | ZO-TH-NEU-001 |
|---|---|
| Application | Electric underfloor heating (indoor) |
| Display | 160 × 128 RGB TFT LCD |
| Power supply | 90–240 V AC, 50/60 Hz |
| Relay | 16 A / 240 V AC |
| Temperature display range | −20 to 70 °C |
| Sensor | NTC probe, 10 kΩ ±1% |
| Dimensions | 83.5 × 83.5 × 54.6 mm |
| Package | Thermostat, NTC floor sensor, 2 fixing screws, user manual |
| Certification | CE / RoHS — in progress |
Designed to be understood

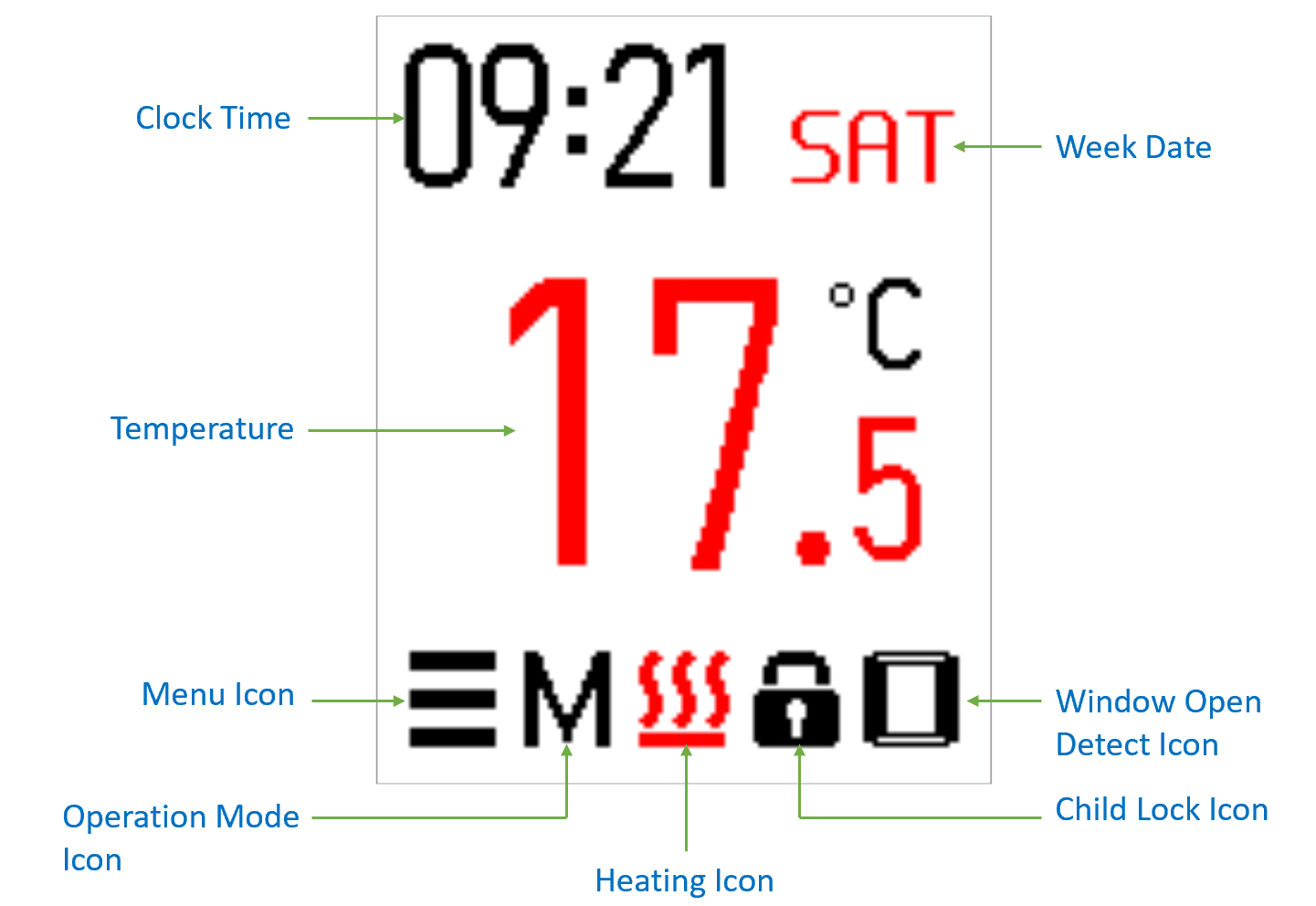

The main screen shows clock, weekday, temperature and status icons for mode, heating, child lock and window-open detection. Three keys — Up, Enter, Down — handle all settings.
Standard wall box, simple wiring

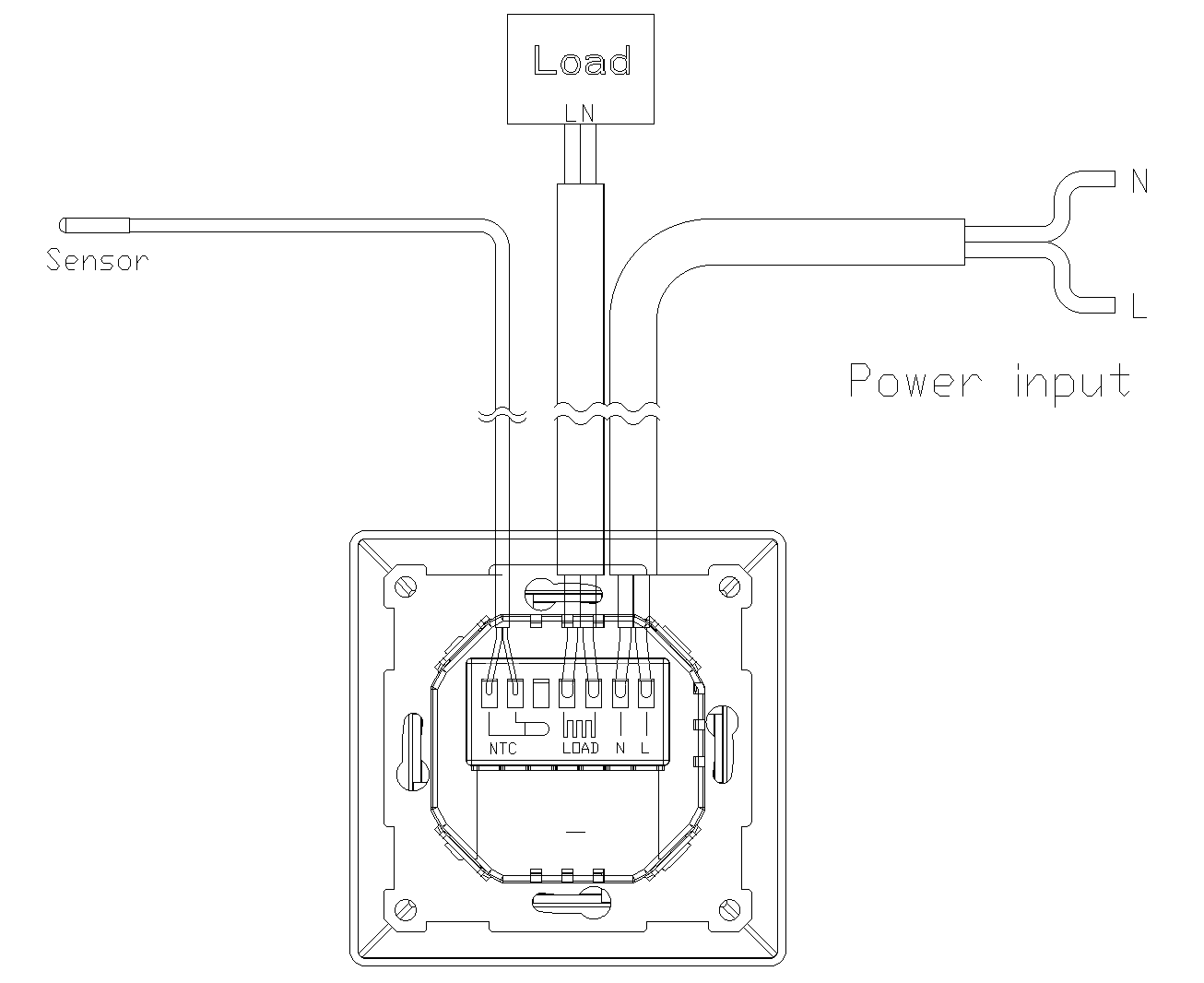

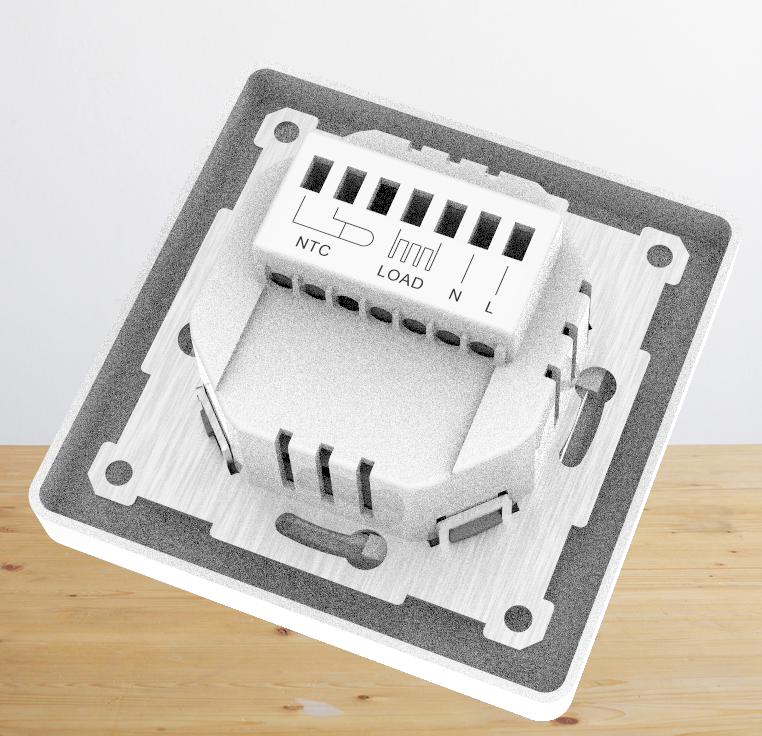

Mounts on a standard wall junction box. Clearly marked terminals for mains input (L, N), heating load and the external NTC floor sensor.
